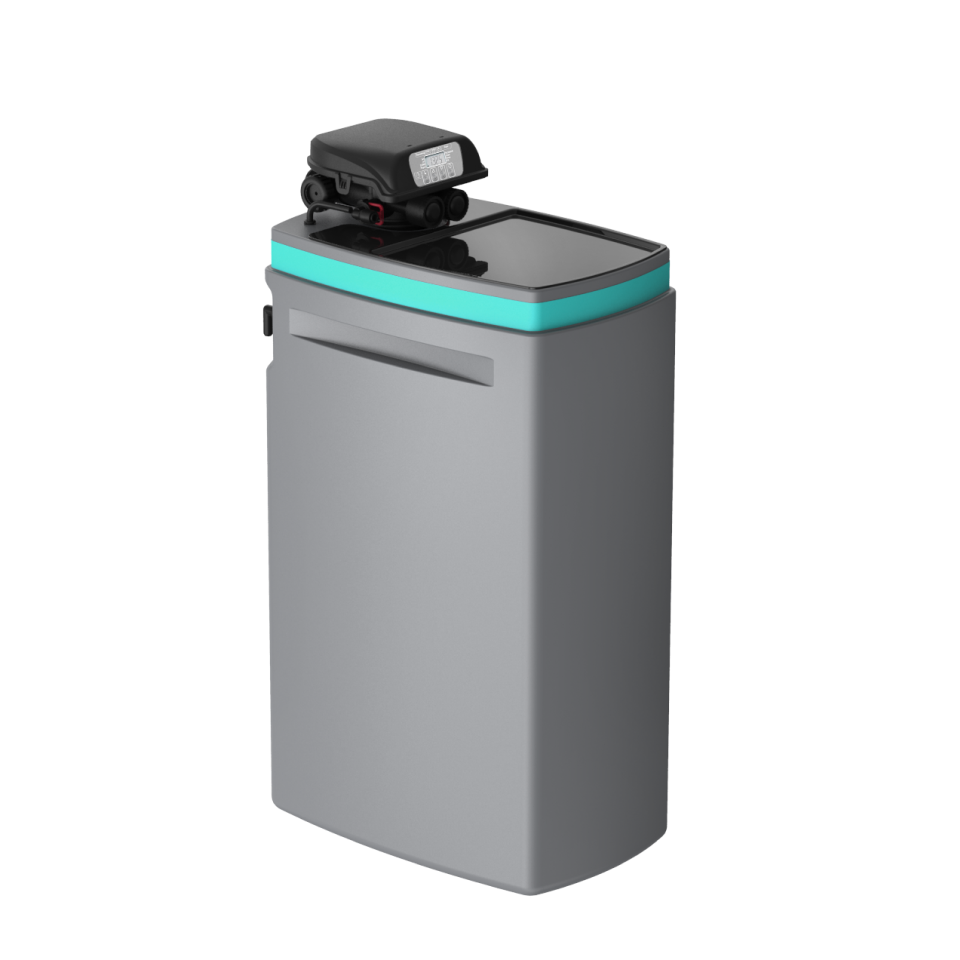

The Anthracite Azure 370 is a high-capacity, low-maintenance water softener designed for efficiency and long-term performance. With up-flow proportional brining, it ensures optimal salt consumption and water savings while delivering a high flow rate of up to 2.9 m³ per hour. A large salt capacity of 130 kg allows for up to 15 months of operation before requiring a refill.

Key Features
✔ Reliable Clack® DV Valve – US-made with diamond-carbon coating for enhanced durability and efficiency.
✔ Increased Salt Capacity – Holds up to 130 kg of salt, minimizing the need for frequent refills.
✔ Built-in Mixing Valve – Allows for precise adjustment of water softness.
✔ Up-Flow Proportional Regeneration – Reduces salt and water consumption for cost-effective operation.
✔ Water-Saving Technology – Uses only 100 liters per regeneration cycle.

Performance Parameters

• Flow rate: 2.5–2.9 m³/h
• Resin capacity: 37 L (DOWEX® HCR-S/S ion-exchange resin)
• Softening capacity: 7.5 m³
• Salt usage per regeneration: 3.0–6.0 kg
• Water usage per regeneration: 0.10–0.37 m³
• Operating time before salt refill: Up to 15 months

Technical Specifications

• Regeneration time: 80–100 minutes
• Pressure drop in service mode: 0.5 bar
• Inlet pressure: 2–6 bar
• Power supply: 230 V, 50 Hz
• Power consumption: 30 W
• Inlet/outlet pipe size: 1’’

Feed Water Requirements

• Hardness: ≤15 meq/L (750 mg/L CaCO₃)
• Iron: ≤0.2 mg/L
• Manganese: ≤0.05 mg/L
• Pre-filtration requirement: 100 μm sediment filter
• Operating water temperature: +4…+30 °С
